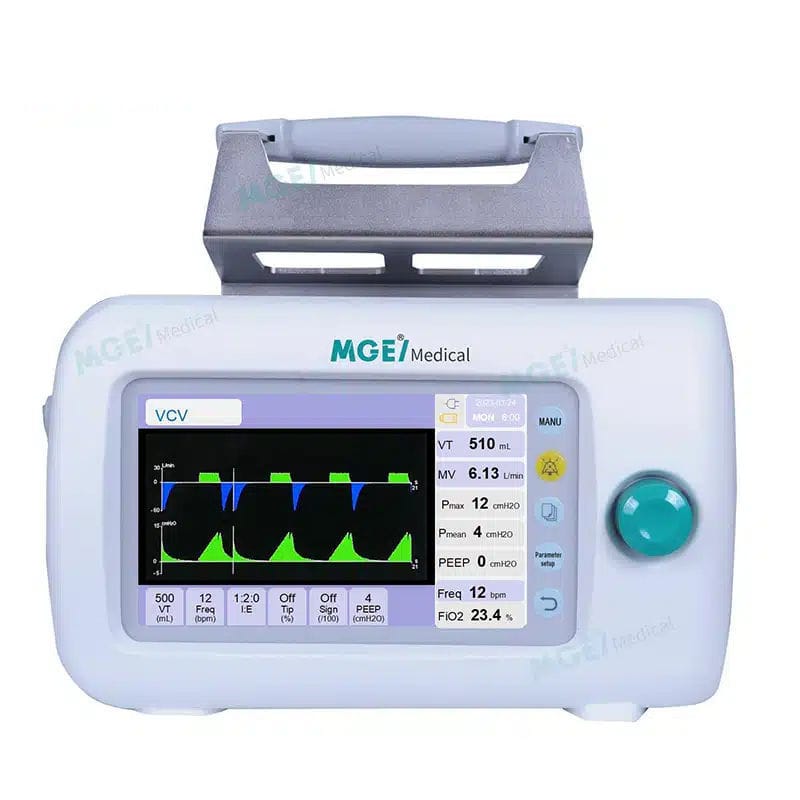

Emergency ventilator
MGE-ERVW22
Operating Panel: English (Standard) Drive: Gas Driven
Display: 7-inch LCD
Gas source: Pure air or Oxygen
Application: Applied for child and adult (Weight>5kg)
Basic Features
Operating Panel: English (Standard)
Display: 7 inch LCD
Drive: Gas Driven
Gas source: Pure air or Oxygen
Operating: Electronically controlled
Application: Applied for child and adult (Weight>5kg)
Main Specifications
Ventilation Mode: VCV, SIMV,AC, SIGH,MANUAL, CPAP, PCV(OPTIONAL),PSV(OPTIONAL)
Tidal Volume: 20-2000ml
I:E Ratio: 4:1-1:8
Rate: 4-100/min,1-40/min under SIMV
FiO2: 40%-100%
Pressure trigger sensitivity: -20-0 cmH20, PEEP 0-20 cmH20
Monitoring Parameters: Tidal volume, Minute volume, Breathing rate, Airway Pressure
Alarms: No VT, MV too high(low), Airway pressure too high(low), AC power off, back-up battery too low.audio alarms or prompt hints
