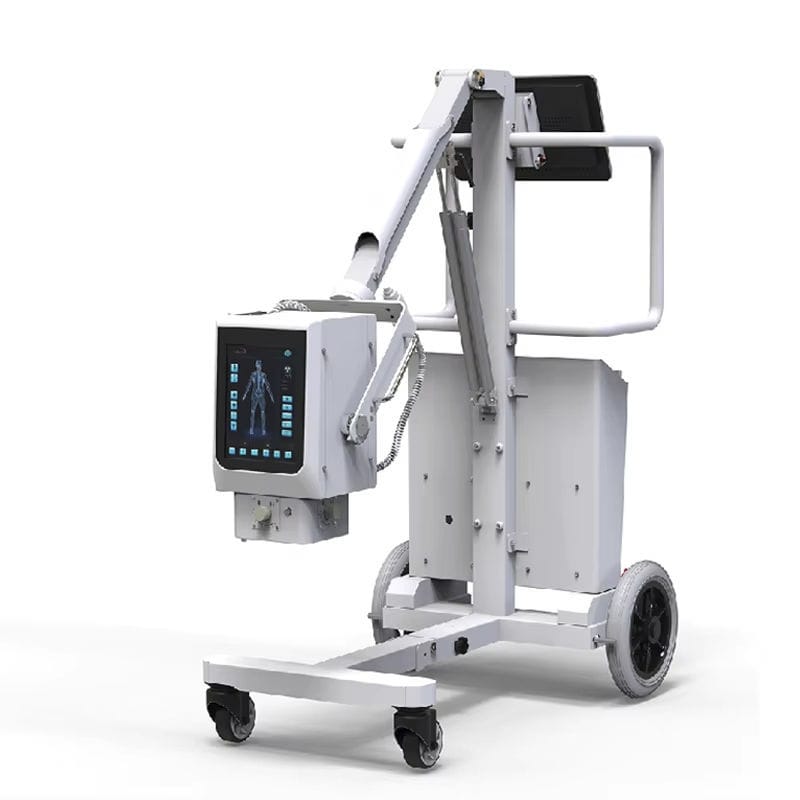

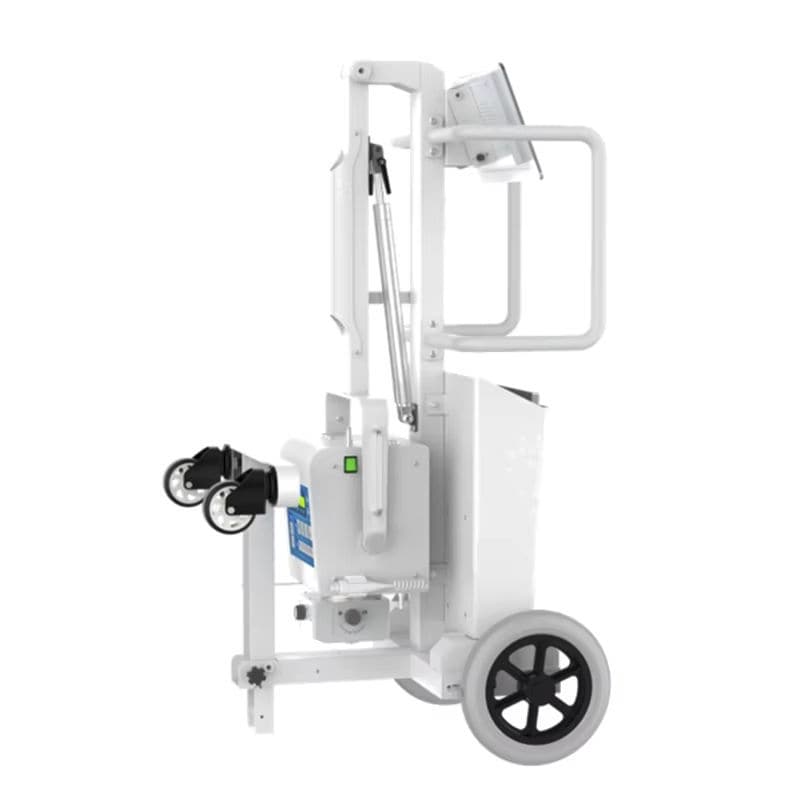

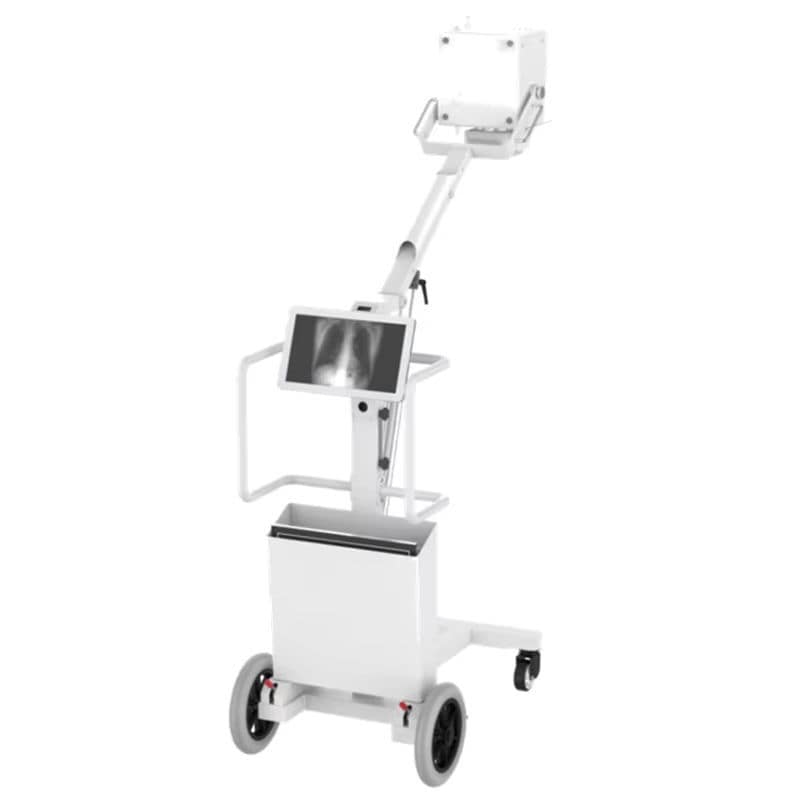

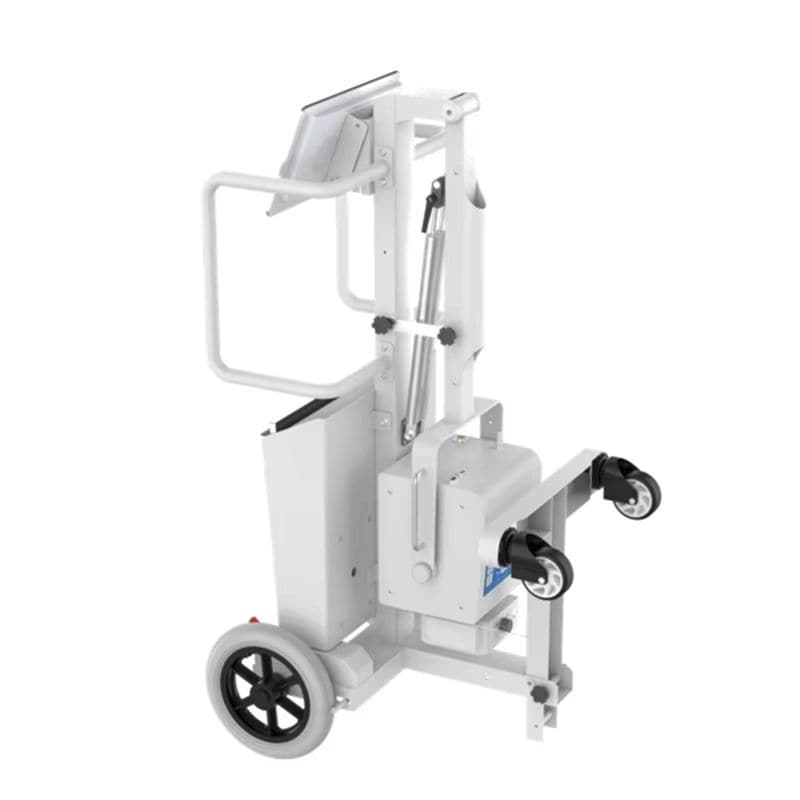

The YSN080-B Mobile Digital X-Ray Unit with Flat Panel Detector is a state-of-the-art diagnostic imaging solution that combines power, precision, and portability. Designed for versatility, it delivers high-quality imaging for a variety of clinical settings, from hospitals to mobile healthcare units.
Key Features
Power: 8kW Voltage: AC 110V/220V ±10% kV Range: 40-125 kV mA Range: 5-160 mA mAs Range: 0.1-200 mAs Working Frequency: 100 kHz Exposure Time: 0.0032s - 10s Single Focus: 2.0 mm Head Size: 420 mm x 245 mm x 240 mm Head Weight: 18 kg Power Supply: AC/DC 12V ±10% Advanced Imaging Features
Positioning Lamp: LED, 10W with 30+2s delay time. Radiation Field: Maximum: 243x43 cm at SID=100 cm Minimum: 160 Lux at SID=100 cm Intrinsic Filtration: 1.2 mm Al@75 kV Laser Light Lamp: Dual-point fast-positioning laser Flat Panel Detector
Size: 17 x 17 inches Resolution: 3.6 lp/mm AD Conversion: 16 bits Scintillator: CsI (Cesium Iodide) Pixel Size: 139 µm Pixels: 3072 x 3072 Fill Factor: 70% Weight: 4 kg Image Transfer: Ethernet The YSX080-B offers precise imaging with its high-resolution flat panel detector and advanced features like dual-point laser positioning and LED illumination. It is engineered to meet the demanding needs of healthcare providers, ensuring accurate diagnostics and seamless workflows.
YSN Med Equip (Guangzhou Yueshen Medical Equipment Co., Ltd.) is a medical equipment manufacturer specializing in innovative and high-quality medical devices. Established in 2003, our company has since then been dedicated to designing, manufacturing, and distributing medical equipment for our customers all over the world. Over the past 20 years of development, our commitment to quality, innovation, and customer service has earned us a reputation as a trusted medical equipment manufacturer.
Our factory is located in Foshan, which is the closest city to our main office, it is about 4000 SQM, the total employees are over 100 people, and our annual output value is up to US$50 Million - US$100 Million. We constantly develop and manufacture advanced medical equipment ahead of the industry based on customers' needs, and strictly control product quality that is why our company's sales amount are continuously increasing year by year.
We currently have four categories of products, including X-ray Machines, Medical vacuum cushions,UV-C disinfection robots and a small animal imaging system. Our products are widely used in hospitals, clinics, and other healthcare facilities globally.
Product Application: Our products can be utilized in hospitals, hotels, restaurants, and other public places.
Production Equipment: We mainly design and manufacture UV-C disinfection robots, X-ray Machines, Small Animal Imaging Systems, and Medical vacuum cushions that diagnose, monitor, and treat diseases and conditions that affect humans and animals.
We have 20 years of experience in the medical field in 2006, we exported 125 sets of medical X-ray machines to Congo at one time, setting a record for exporting medical X-ray machines to foreign countries. In 2008, the same customer ordered another 150 X-ray units and 800 sets of surgical instruments. So far, we have established good cooperation with customers from 88 countries globally.
We help our customers to fully understand our product, and follow up every detail of the transaction so that our customers have an easy, enjoyable trading experience with us.
Vision：Committed to providing reliable medical equipment and services for global customers
To become a leader of the medical and health industry
Mission: Continually develop innovative medical equipment, enhance human health
"Enhance the innovation, bring the health life for people”
