Electronic heating plate
HT-15002

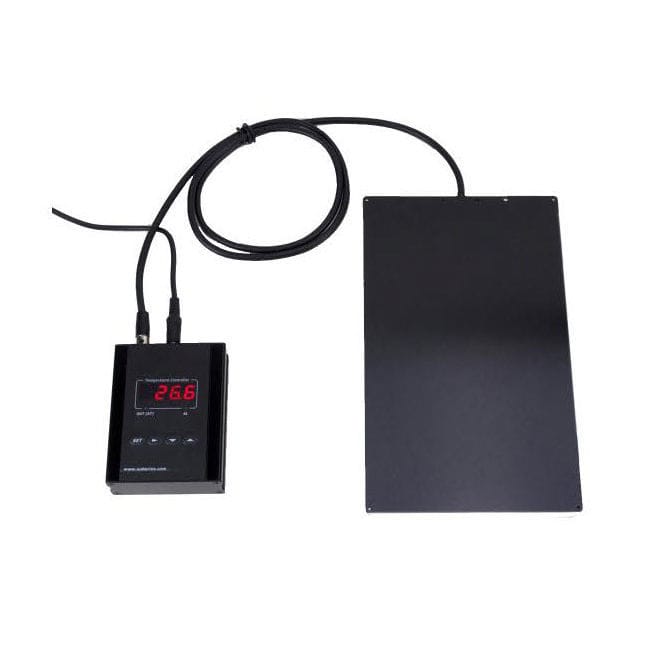

The Somni DC Powered Heat plate with controller is an ultra-slim, low noise heating plate. It allows researchers to maintain the animal’s body temperature at a specific and precise temperature. The power input of the controller is 12 VDC (AC-DC power adapter is included). This low voltage reduces electric noise generated from the heating current. Uniform temperature distribution is achieved over the entire surface, while keeping the plate thin and cost low.
Input Voltage -
12 VDC
Output Voltage -
12 VDC
Temperature Display Range -
0-50.0 C
Min. Control Temp -
5 C above ambient
Max Control Temp -
50.00 C
Temp accuracy -
+/- 0.1 C (in 25-50 C range)
Controller Dimensions -
80x 30x 107mm (3.1x 1.2×4.2\")
Weight -
97 kg (2 lb)
Heat Pad Dimensions -
HT-15002: 250 x 150mm (9.Bx 5.9\")
HT-15003: 140 X 80 mm
Heat Pad Thickness -
2mm (0.08\")
Heat Pad Wattage -
36W at 12VDC
Warranty -
1 year
