Solution I. PODO PhysioSensing

Static & Dynamic & Postural Analysis

***Fast Feedback***
***Fast Shipping***
***Ask us for online demonstration***

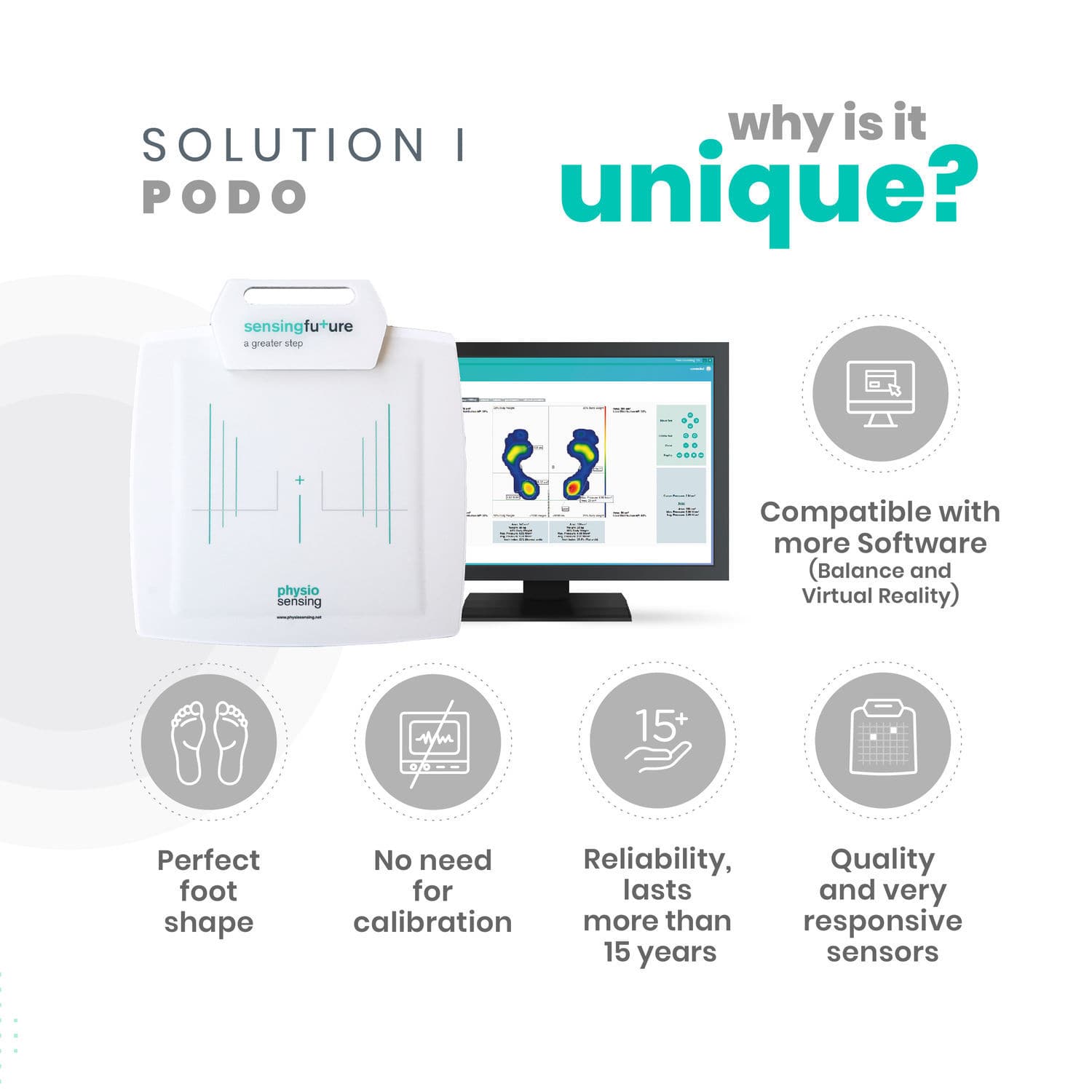

Why is it unique?
- Quality of sensors and very responsive. Perfect foot shape.
- Reliability, lasts more than 15 years
- No need for calibration
- Compatible with more software (Balance and Virtual Reality)

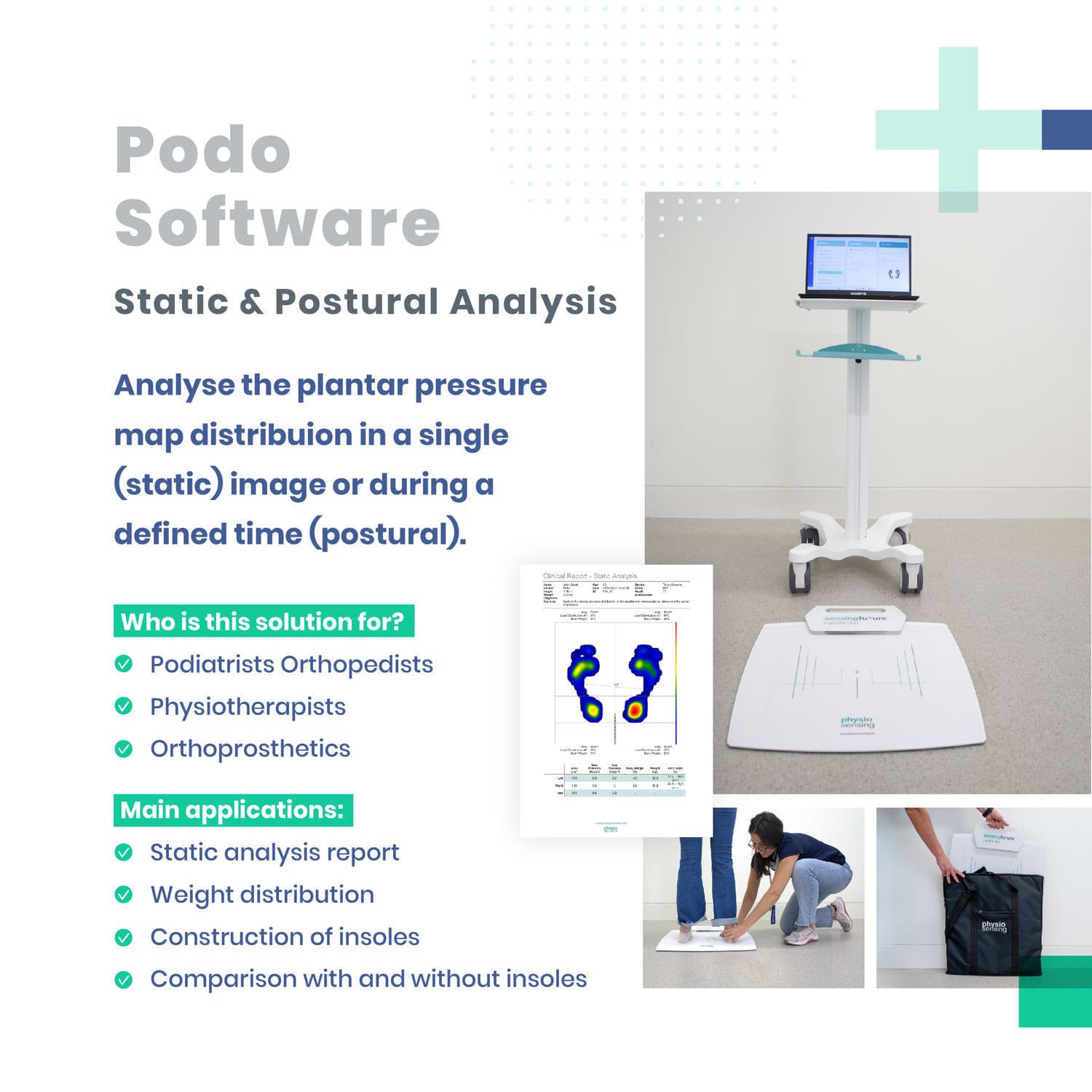

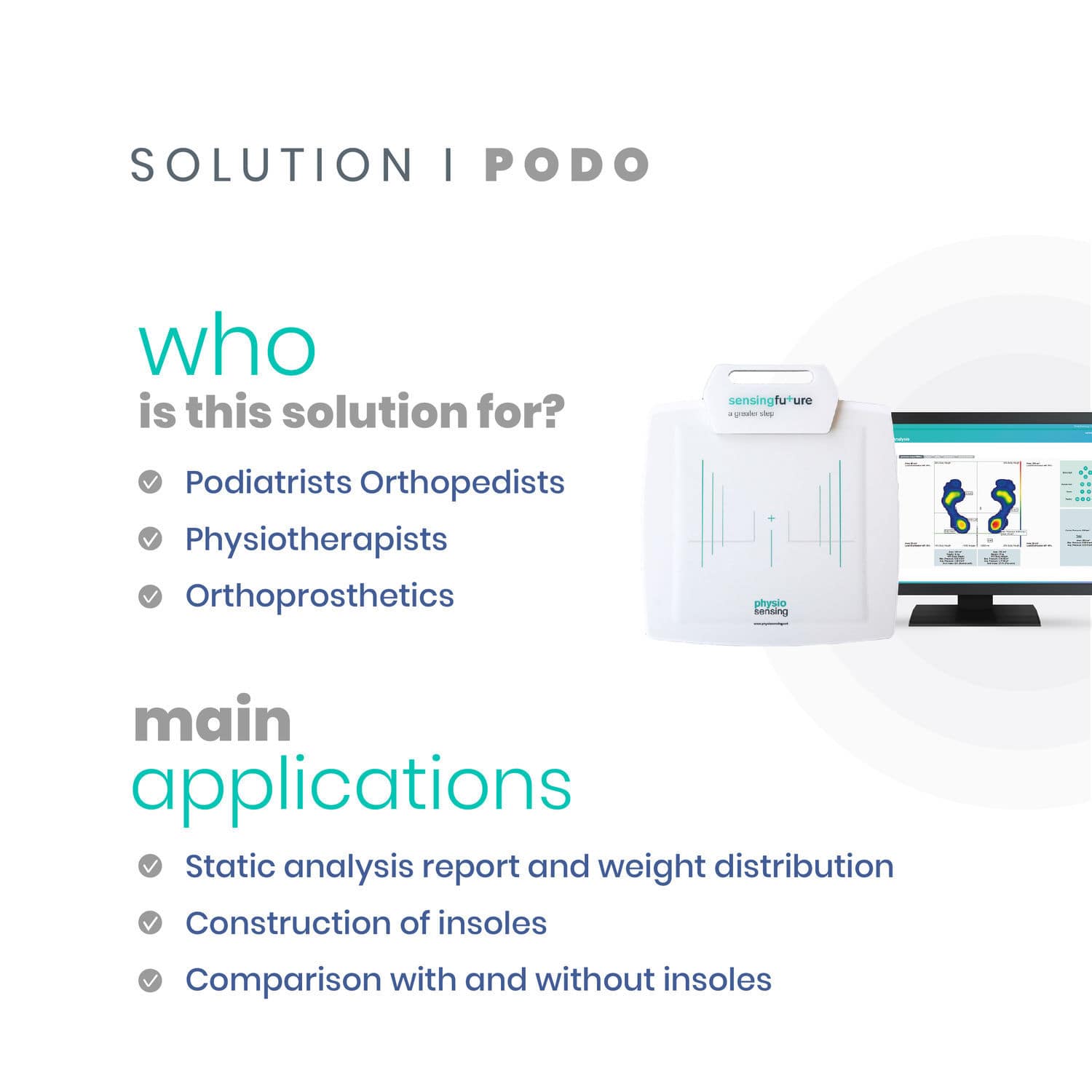

Who is this solution for?
Podiatrists
Orthopedists
Physiotherapists
Orthoprosthetics

Main applications:
- Static analysis report and weight distribution
- Construction of insoles
- Comparison with and without insoles

COMPOSITION

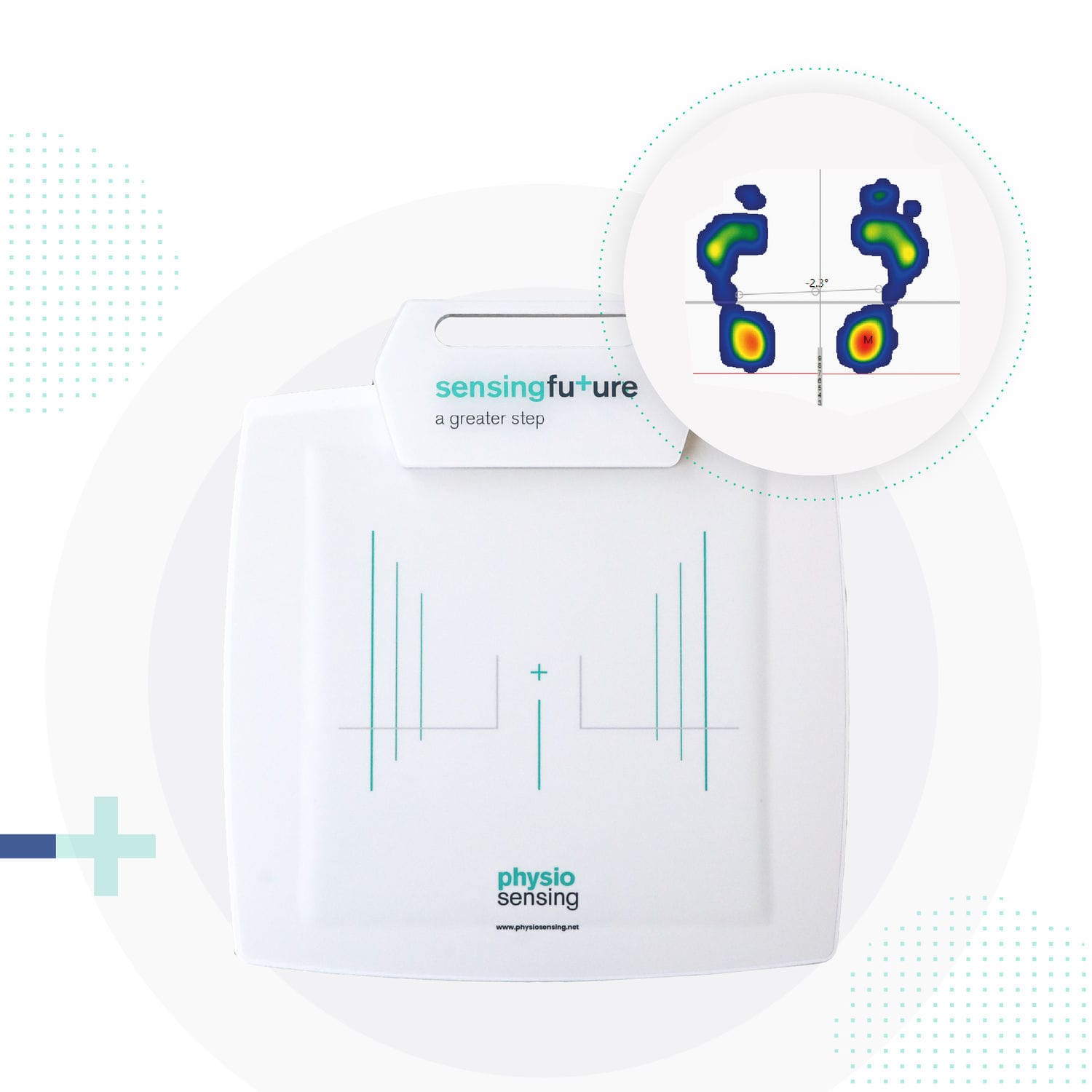

Pressure Platform
Podo Software

PRODUCT CERTIFICATION
CE Medical Device Class I according MDR EU 2017/745

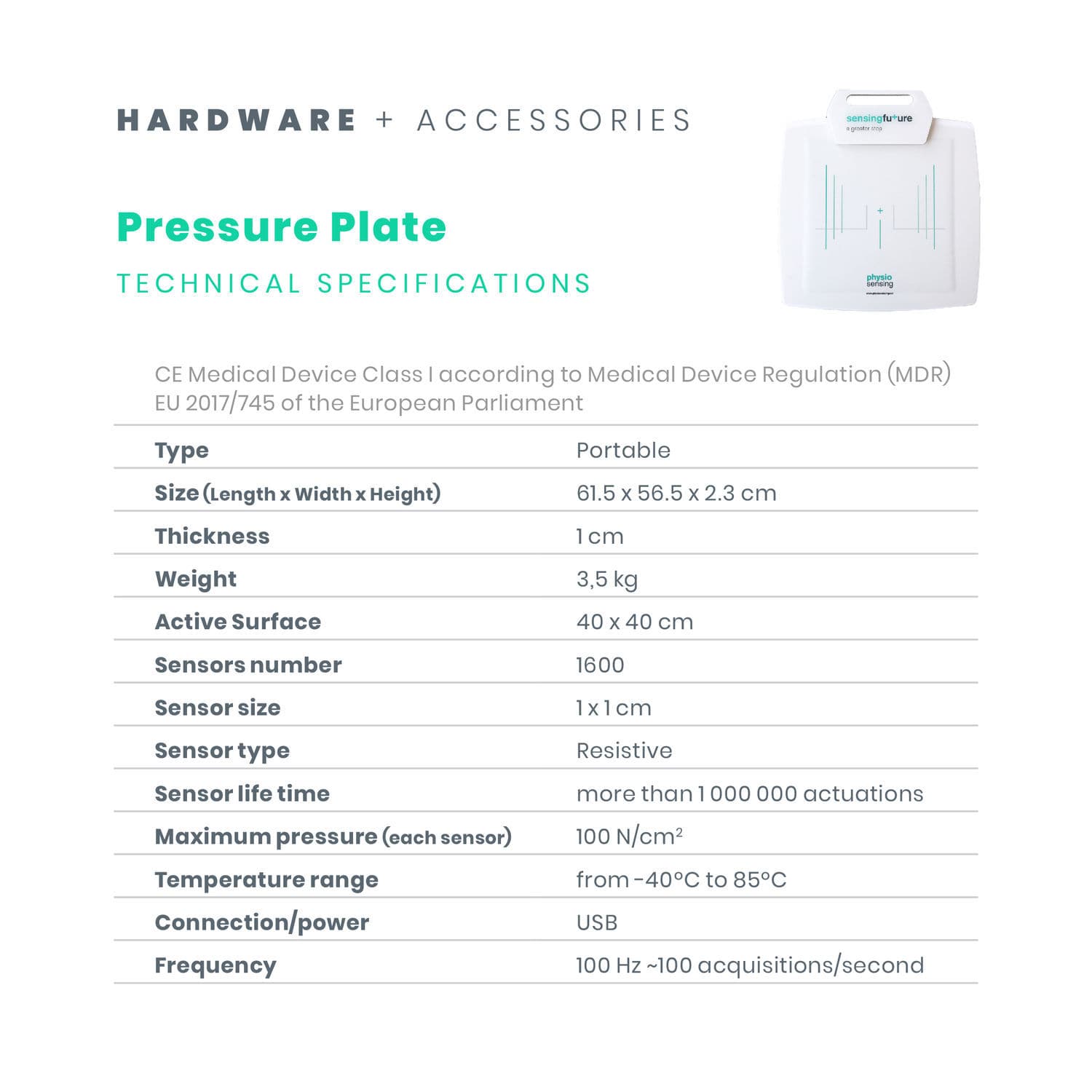

TECHNICAL FEATURES - PRESSURE PLATFORM
Type Portable
Size 61,5 x 56,5 X 2,3 cm
Thickness 1 cm
Weight 3,5 kg
Active Surface 40 x 40 cm
Sensors number 1600
Sensor size 1 x 1 cm
Sensor type Resistive
Sensor life time more than 1 000 000 actuations
Maximum pressure (each sensor) 100 N/cm2
Temperature range from -40ºC to 85ºC
Connection/power USB
Frequency 100 Hz ~100 acquisitions/seconds

FEATURES- SOFTWARE PODO

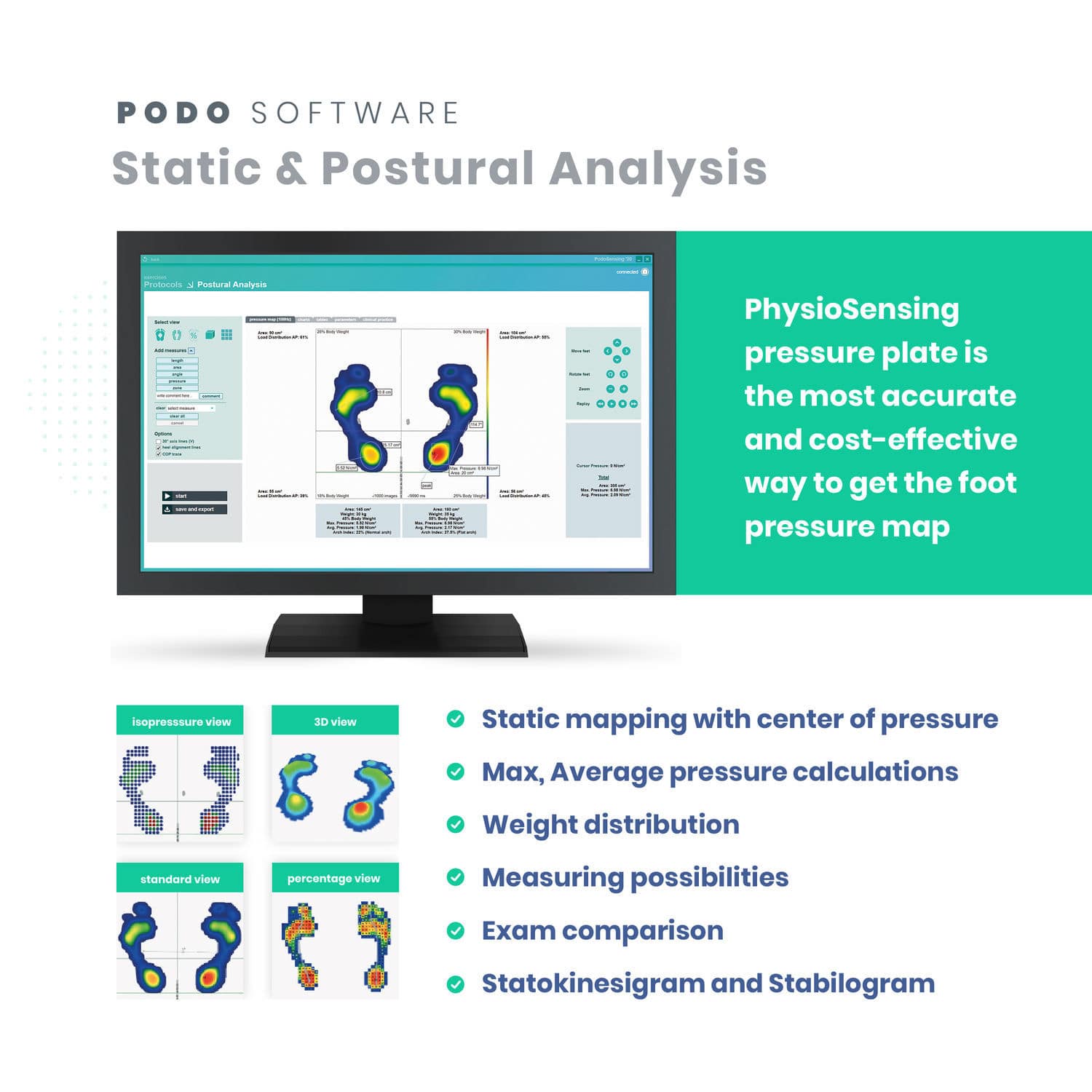

>Static & Postural Analysis
Static mapping with CoP
Max, Average pressure calculations
Weight distribution
Measuring possibilities
Exam comparison
Statokinesigram and Stabilogram
Clinical Reports

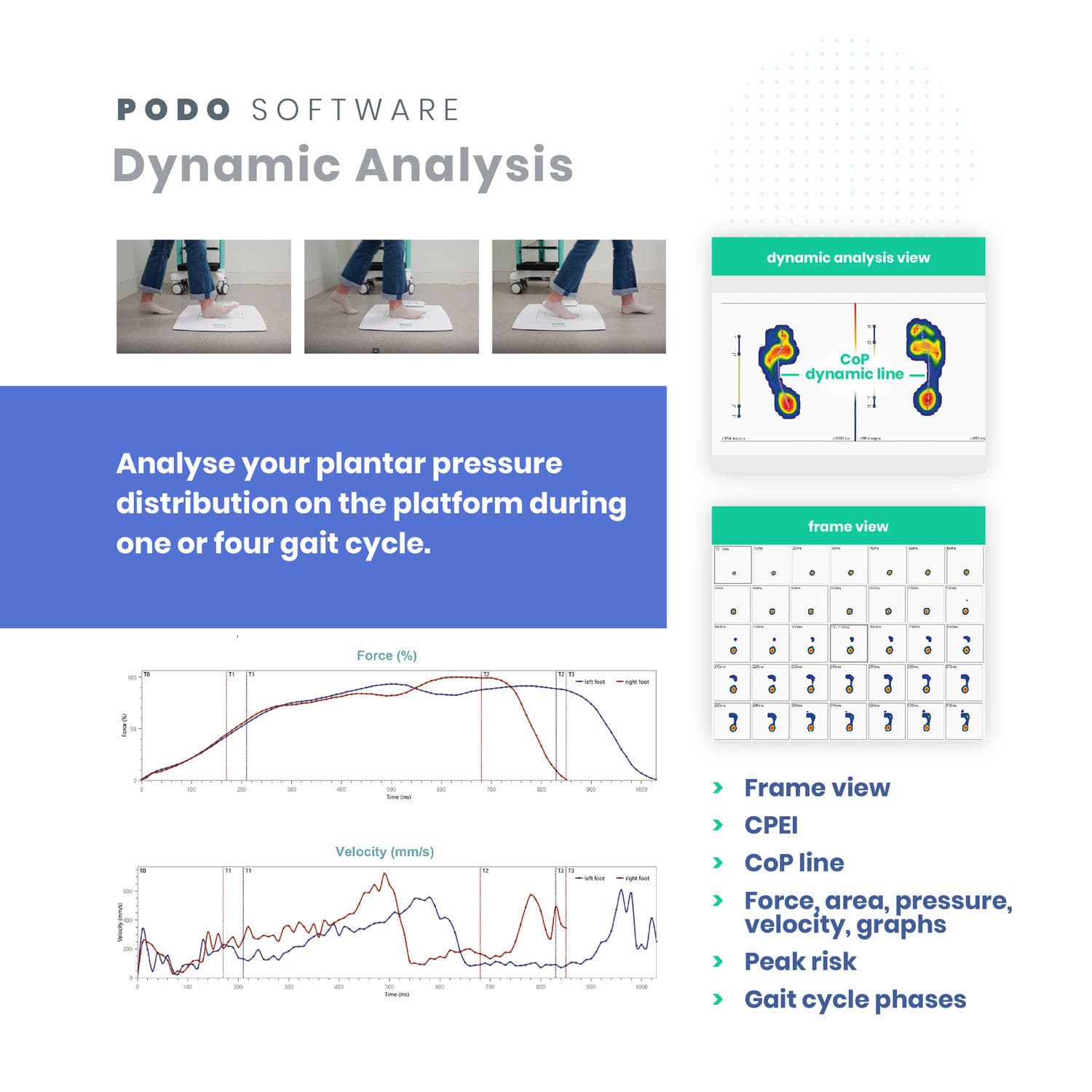

>Dynamic Analysis (gait)
Frame view
CPEI
CoP line
Force, Area,Pressure, velocity- graphs
Peak risk
Gait Cycle Phases
Video export function of gait

PC REQUIREMENTS
PC is not included
Processor (CPU): i3, Quad-Core, 2GHz
RAM 4 GB
USB Ports 2.0 or 3.0
Operating System Windows 10 or 11

WARRANTY
2 years of warranty.

PAYMENT CONDITIONS
Pre-payment in EURO. Wire tranSfer or Credit Card (+ 3,5%).
