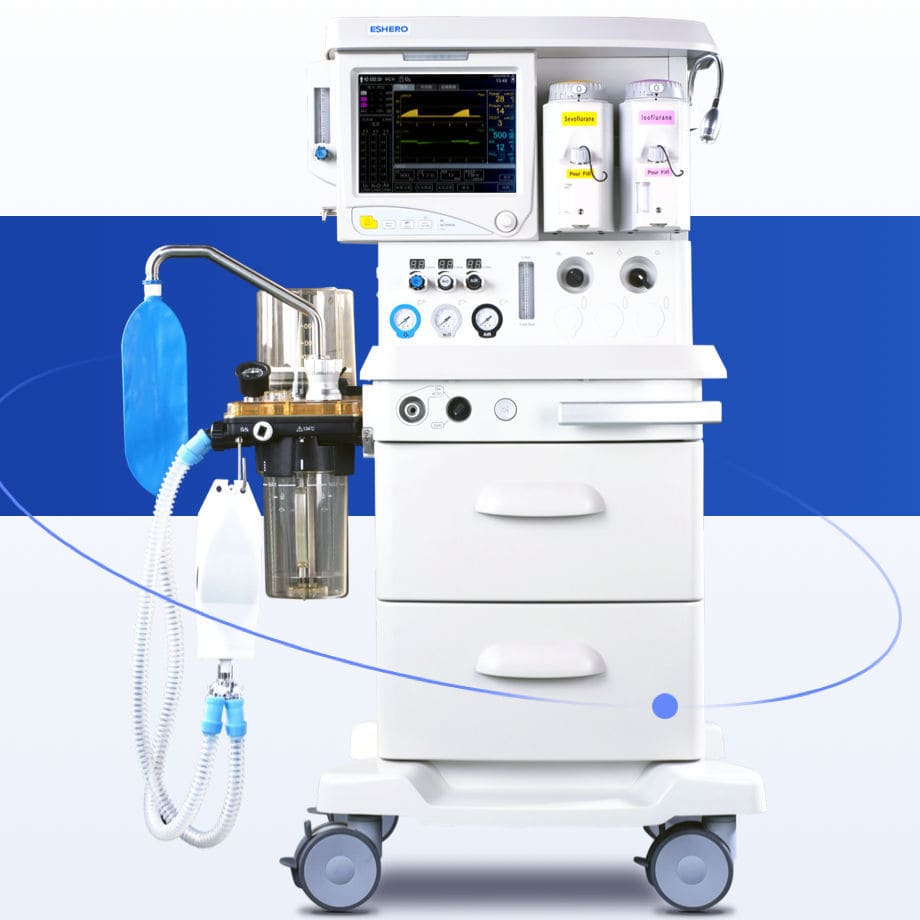

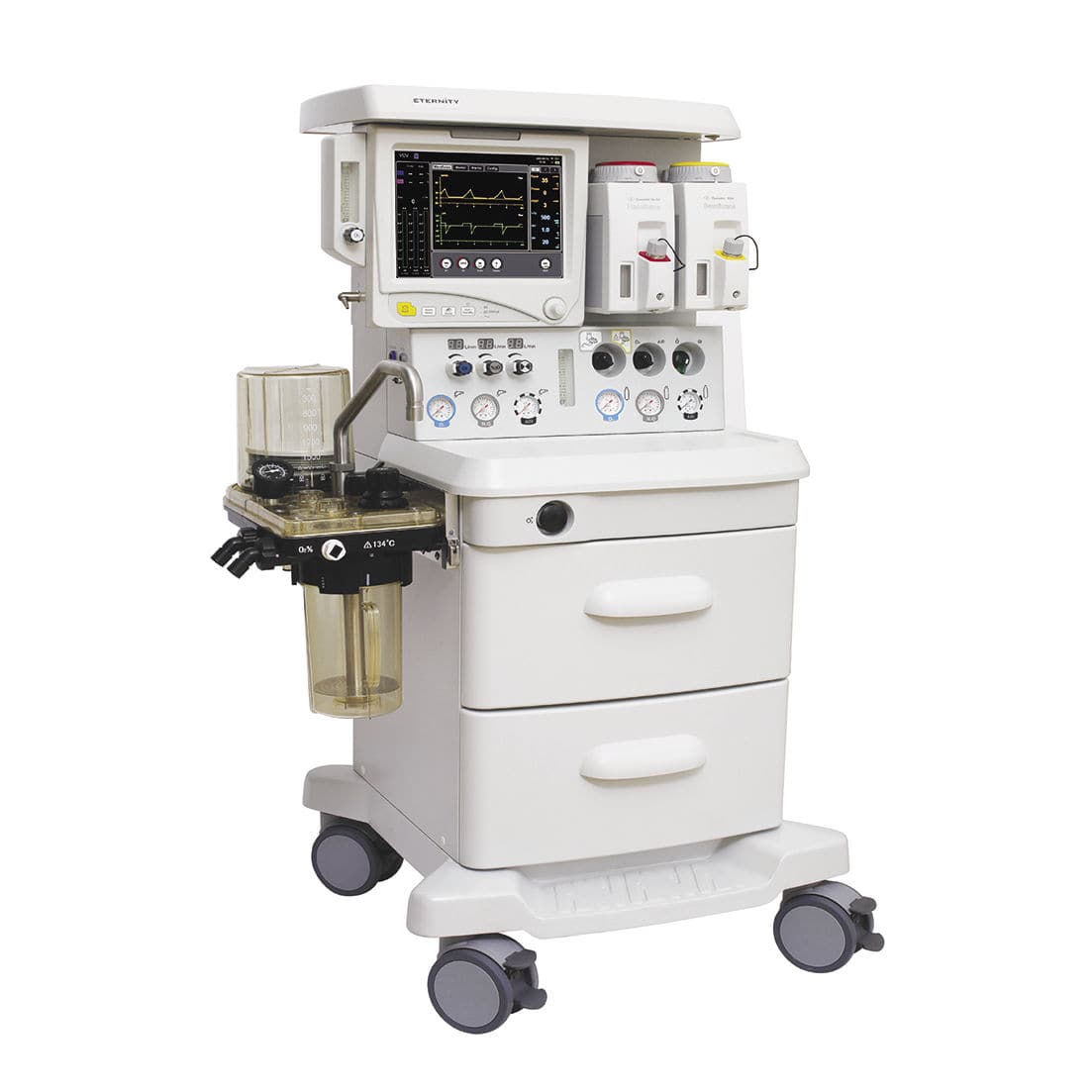

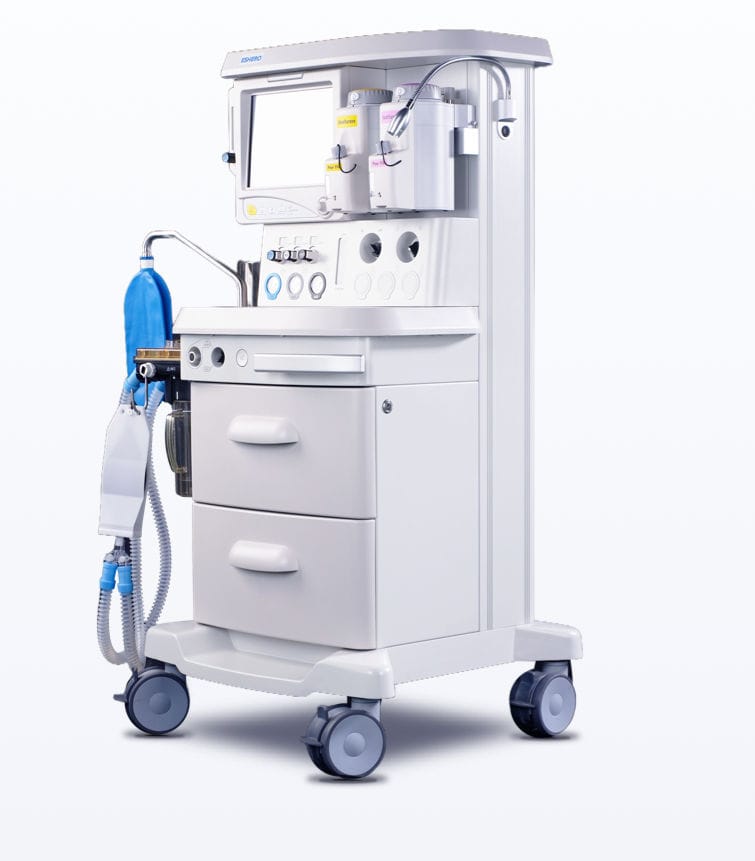

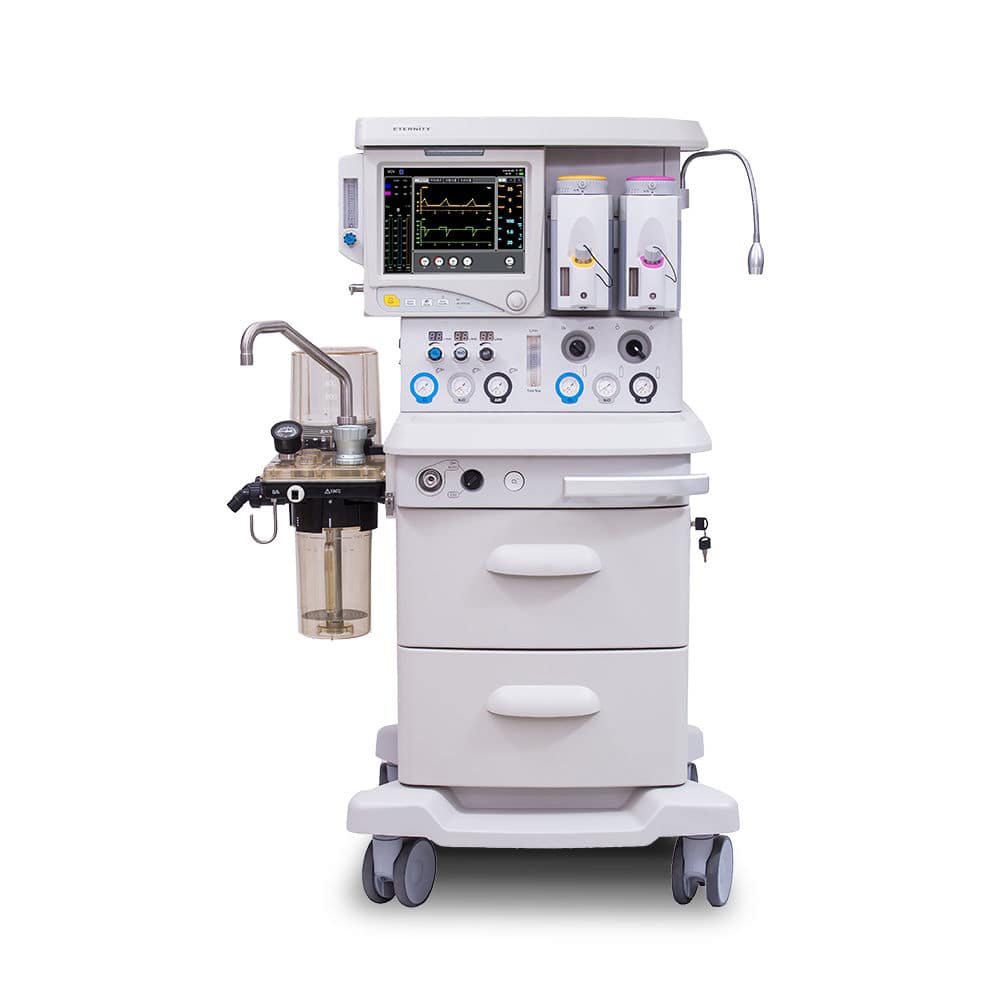

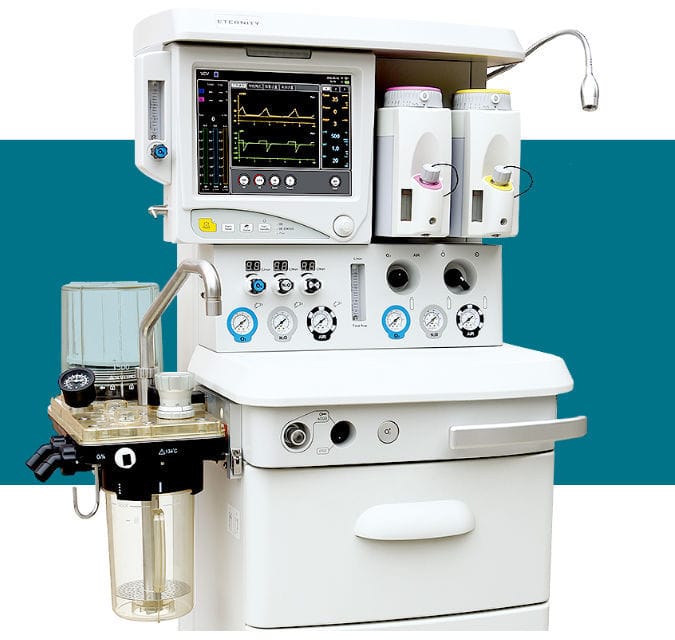

Trolley-mounted anesthesia workstation
AM852
Making surgery easier, making the patient safer
Powerful ventilatory function meets satisfy différent clinical needs

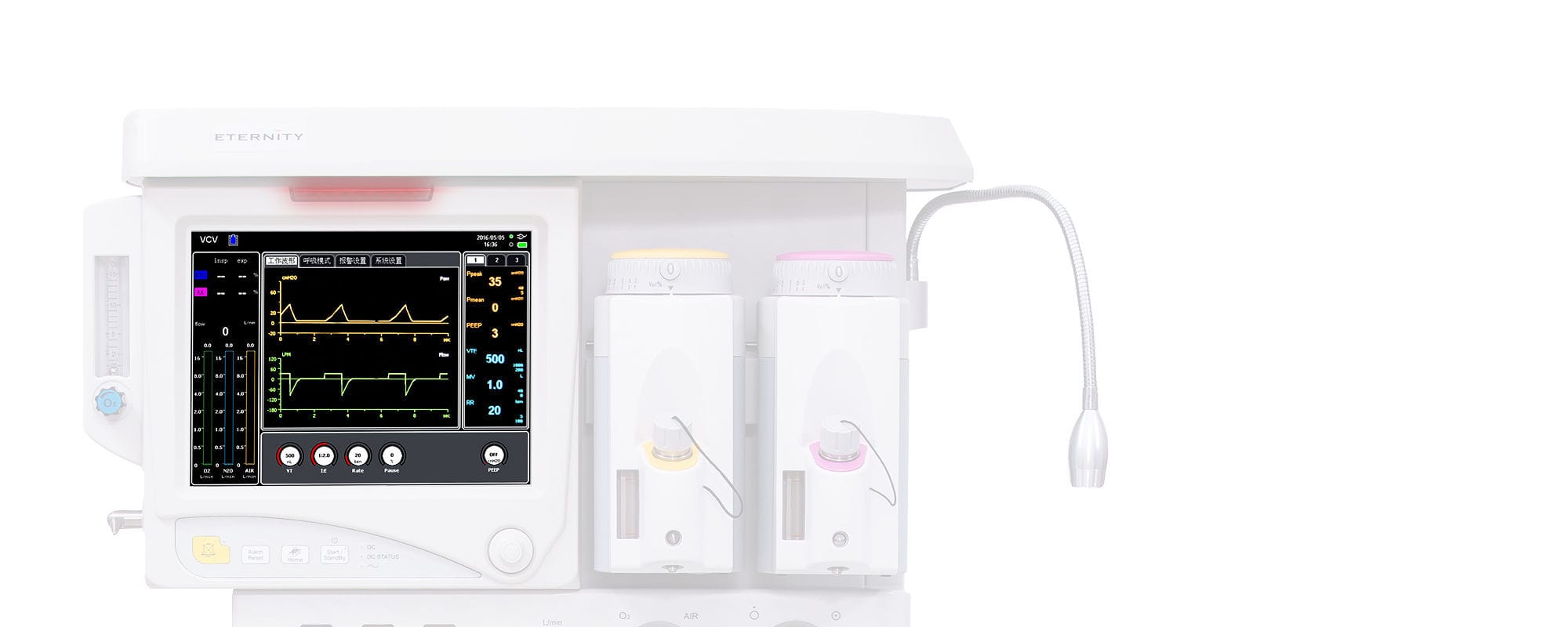

12.1’ HD color touch screen with humanized design makes opération easier
Electronic flowmeter makes gas output more accurate, stable and easy to observe
Switch for choosing air or oxygen as driven gas makes opération more économie

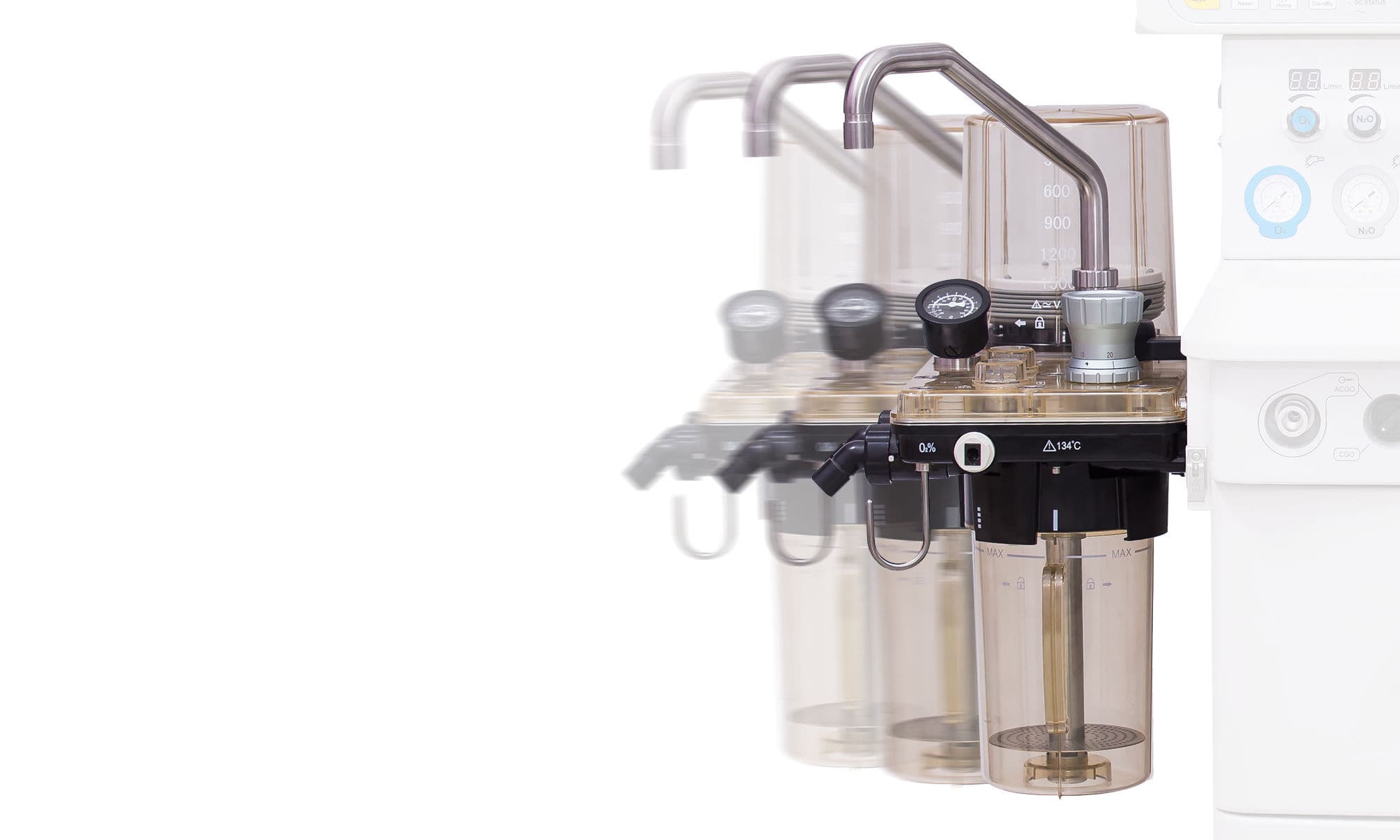

The integrated ventilation circuit has a heating function to prevent condensation in the circuit and the By-pass function provides uninterrupted ventilation for long surgery
Main Controlled parameters
VT(Tidal volume) 15 ~ 1500ml
Tinsp(lnspiratory time)0.1 ~12.0S
PEEP OFF,4-30cmH20
f(Respiratory rate) 0~90bpm
Rr(Pressure trigger)0~10cmH20
Pause 0-50%
l:E(Breathing ratio) 1:10-8:1
Ftr(Flow trigger)0.5~20L/min
Psupp/Pinsp 5~50cmH20
BASICPARAMETERS
Input voltage 100~240 VAC
The time work with battery : 120 min
Loops : Pressure-Volume.Flow-Volume,Pressure-Flow
Input frequency 50/60Hz - -
Waveforms: Pressure-Time, Flow-Time, Volume-Time, C02-Time
Battery quantity:1 pc
Air Source 02, N20, AIR
